Length measurement + preparation + filling technology
The EndoPilot²-Plus set supplements the patented length measurement and preparation with a down-pack and BackFill for thermoplastic filling. The integrated down-pack enables three-dimensional filling of the apical third. The use of the high-quality BackFill gun ensures convenient thermoplastic filling of the middle and coronal thirds. The pistol grip lever is easy to operate and allows optimum control of the flow rate and filling process. Different temperatures can be selected via the touch display and reached in a short heating time thanks to a powerful control system.
The EndoPilot2’s file library contains more than 500 illustrated NiTi files, with no manufacturer restrictions.
The electrically fully insulated Endo motor works without insulating covers and supports various movements such as full rotation, anti-clockwise rotation, twist mode, reciprocating and ReFlex. It is controlled wirelessly via a Bluetooth foot switch.
The customisable contra-angle handpiece has hard gold-plated spring contacts for maximum measuring precision. A modern design progress indicator visualises the position in the root canal in real time. The EndoPilot² is developed and produced in Germany to guarantee the highest quality standards and is ideal for practitioners who demand the highest standards of accuracy and efficiency.
Technical Data | Description |
---|---|
Performance and Quality | Battery performance of 16 hours |
File library with over 530 illustrated NiTi files, without manufacturer restrictions | |
Movement modes: full rotation, anti-clockwise, twist mode, reciprocating and reflex | |
Individually named file sequences can be created with the ‘MyFile’ function | |
Simple updates via micro SD card | |
7’ TFT touch display | |
Autoclavable handpieces | |
Individual setting options for torque, speed and reciprocating parameters | |
Dimensions: 19 cm x 20.5 cm x 17.5 cm (basic device) | |
Wireless Bluetooth footswitch | |
Dynamic apex measurement with the patented pulse measuring method in real time | |
Safety | Coloured display of the position in the root canal |
Torque reduction when approaching the apex | |
Acoustic signals that intensify as the apex is approached | |
Automatic stop when the apex is reached | |
LED display for apex and torque limit | |
User experience | You can have a customised text displayed on the start screen (e.g. your practice name, treatment room, department) |
Over ten selectable sounds | |
Modern designed progress indicator visualises position in the apex | |
Available EndoCart for transport to different treatment rooms | |
Easy wireless use thanks to integrated rechargeable battery |
Expandable with:
Ultrasound extension set
Pump module + accessories
SAF pump module + accessories

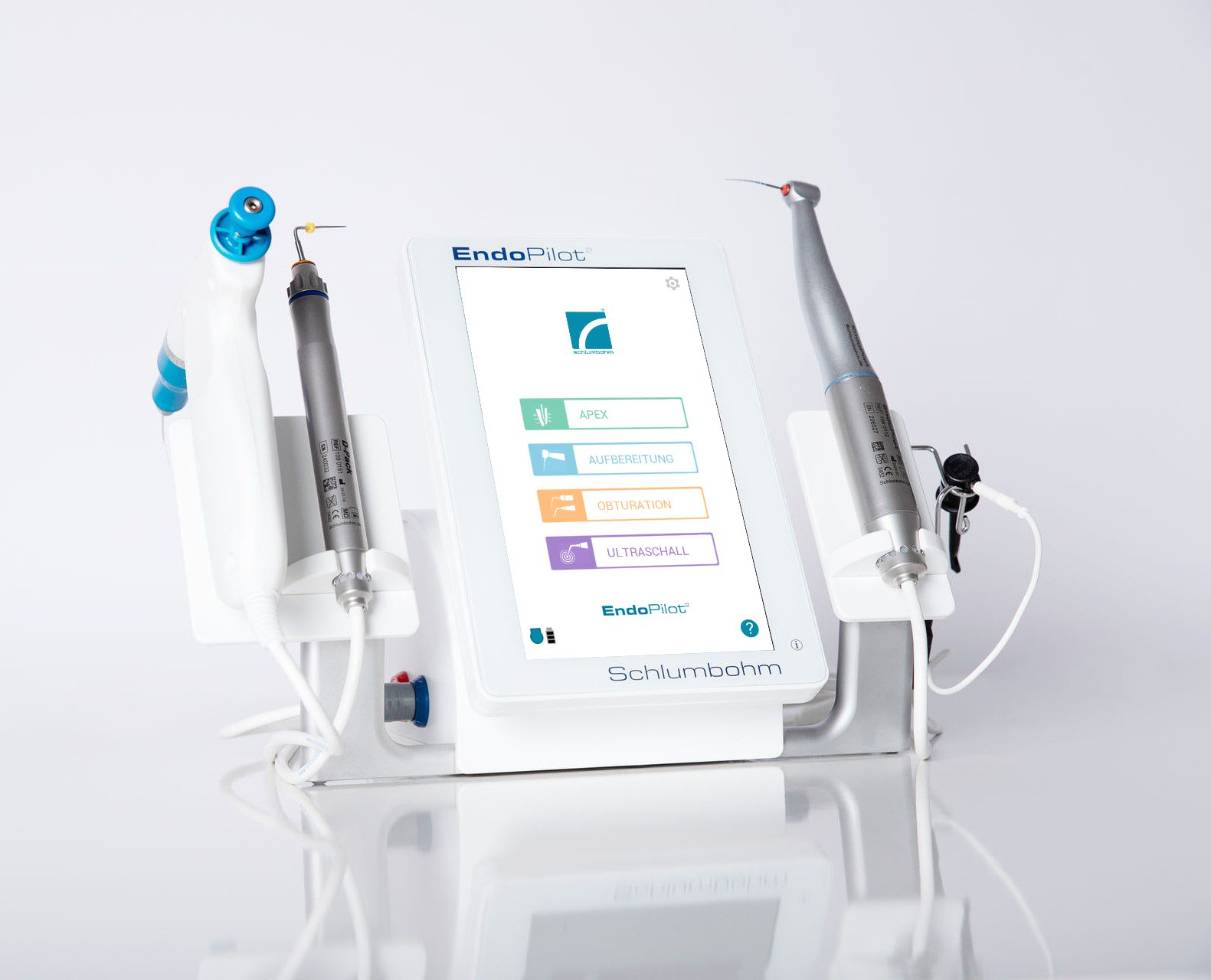

Components of the EndoPilot²-Plus set
Control unit:
- EndoPilot² control unit with 7’ touch display
- Med. Power supply unit 100-240V/50-60Hz
- Wireless foot control, single, bluetooth
- Apex cable set
- Bracket for apex cable
Preparation:
- EDP motor with ISO-E standard & LED display and integrated Apex contact
- EDP contra-angle handpiece, 1:1, insulated, ISO-E standard
Filling technology:
- DownPack/backfill holder left
- Down-pack handpiece, with LED display
- Heating tip size: fine
- Obtura back-fill gun
- Gutta Percha Bar (100 pieces/box)
- Protective sleeve (4 pieces/box)
- Needles Obtura Ø25 ga (5 pieces/box)
- Cleaning tool
- Cleaning set
Repair and guarantee:
Schlumbohm® offers an unlimited repair service and a one-year guarantee.
