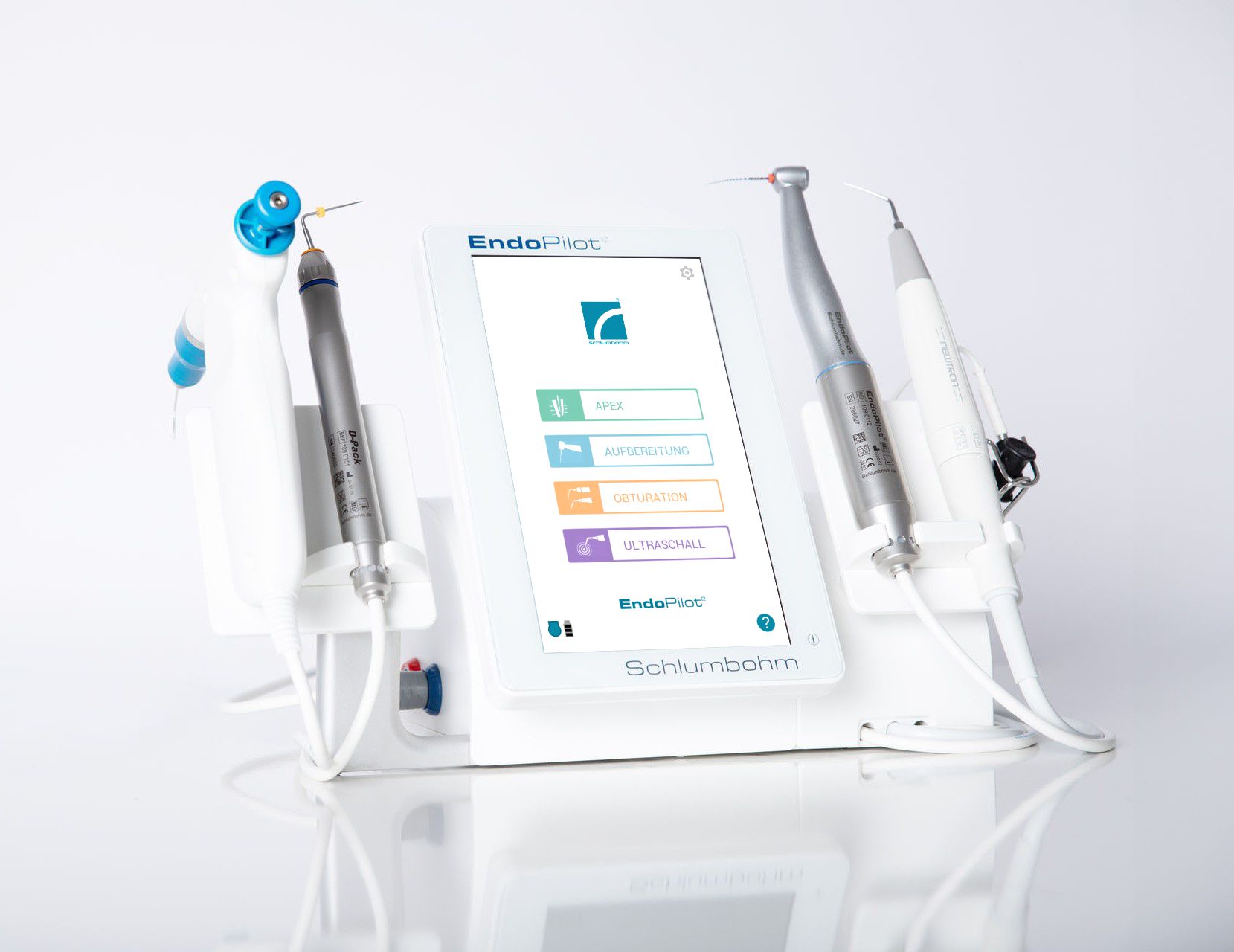

EndoPilot² Ultra Plus
5.517,00 € netto
excl. 19% VAT
The all-in-one solution for your endodontic treatment
Length measurement + preparation + ultrasound + filling technology
The EndoPilot² offers a complete solution for endodontic treatment and is ideal for practitioners who demand the highest standards of accuracy and efficiency.
The EndoPilot2 file library contains more than 500 illustrated NiTi files, with no manufacturer restrictions.
The electrically fully insulated Endo motor works without insulating covers and supports various movements such as full rotation, anti-clockwise rotation, twist mode, reciprocating and ReFlex. The integrated downpack enables three-dimensional filling of the apical third. The use of the high-quality BackFill gun ensures convenient thermoplastic filling of the middle and coronal thirds. Different temperatures can be selected via the touch display and reached in a short heating time thanks to a powerful control unit. The pistol grip lever is easy to operate and enables optimum control of the flow speed and filling process. The autoclavable ultrasonic handpiece Newtron from Acteon is ergonomically shaped so that every grip position is comfortable for the practitioner. The power and length of the runtime are set via the large touch display, as is the instrument selection. It is controlled wirelessly via a Bluetooth foot control.
The customisable contra-angle handpiece has hard gold-plated spring contacts for maximum measuring precision. A modern design progress indicator visualises the position in the root canal in real time. The EndoPilot² is developed and produced in Germany to guarantee the highest quality standards.
Technical Data | Description |
|---|---|
Performance and Quality | Battery performance of 16 hours |
File library with over 530 illustrated NiTi files, without manufacturer restrictions | |
Movement modes: full rotation, anti-clockwise, twist mode, reciprocating and reflex | |
Individually named file sequences can be created with the ‘MyFile’ function | |
Simple updates via micro SD card | |
7’ TFT touch display | |
Autoclavable handpieces | |
Individual setting options for torque, speed and reciprocating parameters | |
Dimensions: 19 cm x 20.5 cm x 17.5 cm (basic device) | |
Wireless Bluetooth footswitch | |
Dynamic apex measurement with the patented pulse measuring method in real time | |
Safety | Coloured display of the position in the root canal |
Torque reduction when approaching the apex | |
Acoustic signals that intensify as the apex is approached | |
Automatic stop when the apex is reached | |
LED display for apex and torque limit | |
User experience | You can have a customised text displayed on the start screen (e.g. your practice name, treatment room, department) |
Over ten selectable sounds | |
Modern designed progress indicator visualises position in the apex | |
Available EndoCart for transport to different treatment rooms | |
Easy wireless use thanks to integrated rechargeable battery |
Expandable with:
Pump module + accessories
Components of the EndoPilot² Ultra Plus set:
Control unit:
- EndoPilot² control unit with 7’ touch display
- Med. Power supply unit 100-240V/50-60Hz
- Wireless foot control, single, bluetooth
- Apex cable set
- Bracket for apex cable
Preparation:
- EDP motor with ISO-E standard & LED display and integrated Apex contact
- EDP contra-angle handpiece, 1:1, insulated, ISO-E standard
Ultrasound:
- Ultrasonic module with double holder
- Ultrasonic handpiece, Newtron
- Handpiece connection cable
- Rinsing adapter
- Universal instrument spanner
Filling technology:
- D-pack/backfill holder left
- Down-pack handpiece, with LED display
- Heating tip size: fine
- Obtura back-fill gun
- Gutta Percha Bar (100 pieces/box)
- Protective sleeve (4 pieces/box)
- Needles Obtura Ø25 ga (5 pieces/box)
- Cleaning tool
- Cleaning set
